171 Liquidtight PVC Conduit

rhino-171

Material	PVC
Construction	Reinforced Spiral Grey PVC
Flexibility	Good
Protection Index	IP67 EN60529
UV Resistance	Superior
Flame Retarded	UL 94 VO Self Extinguishing
Standards	AS 2053 Parts 1 & 5
Compression	750 N
Pullout	68kg for 5mins

logo-standards-australia

Specifications

Trade Size (mm)	Code	ID (mm)	OD (mm)	Radius (mm)	Roll Length (m)
16	171-012	12.5	17.6	50	30
20	171-016	16.0	21.9	70	30
25	171-021	21.0	26.2	90	30
32	171-026	26.8	32.9	140	30
40	171-035	35.5	41.6	190	30
50	171-040	40.3	47.6	240	30
63	171-050	51.6	59.7	270	30

Applications

Earthmoving equipment, lighting, sewerage and food & beverage industries.

Temperature Rating

– 25 to 60 degrees centigrade
short term 150 degrees centigrade

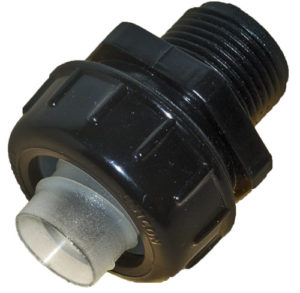

943 Straight Metric Fittings

Hi Impact PVC

943Straight

Trade Size	Thread (mm)	Code	Pack Qty
16	20 x 1.5	943-012	10
20	20 x 1.5	943-016	10
25	25 x 1.5	943-021	10
32	32 x 1.5	943-026	10
40	40 x 1.5	943-035	10

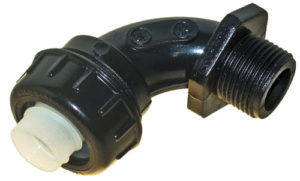

947 90° Metric Fittings

Hi Impact PVC

947_90

Trade Size	Thread (mm)	Code	Pack Qty
16	20 x 1.5	947-012	10
20	20 x 1.5	947-016	10
25	25 x 1.5	947-021	10
32	32 x 1.5	947-026	10
40	40 x 1.5	947-035	10

Fitting Specifications

Made of Hi impact PVC
Superior UV Resistance
IP rating of 67
Standards meets AS2503 Parts 1 & 5
Standards meets UL listed 514b
Temp rating of -20 to 80 degrees centigrade
Metric thread pitch is 1.5mm

949 Straight NPT Fittings

Hi Impact PVC

943Straight

Trade Size	Thread	Code	Pack Qty
16	1/2′	949-012	10
20	1/2″	949-016	10
25	3/4″	949-020	10
32	1″	949-025	10
40	1 1/4″	949-035	10
50	1 1/2″	949-040
63	2″	949-050

978 90° NPT Fittings

Hi Impact PVC

947_90

Metallic Fittings

Metallic fittings can be used with 171 Series
920, 925, 930 Nickel Plated Brass
923, 927 Stainless Steel

920

923

925

927

930
