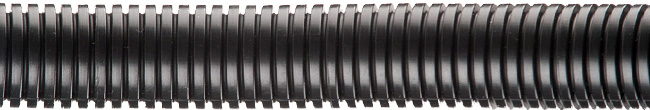

PAH Corrugated Conduit
| Material | Polyamide 6 |
| Construction | Corrugated exterior and interior |
| Flexibility | PAH- Very flexible |
| Protection Index | IP68 EN60529 |
| UV Resistance | Superior |
| Flame Retarded | UL 94 VO Self Extinguishing |
| Standards | AS 2053 Parts 1 & 5 UL Recognised component CE |
| Directive 2002/95/EC Rohs | |
| Impact Strength | 25kg cm/cm2 |
| Tensile Strength | 700kg/cm2 |
Specifications
| Trade Size (mm) | Code | ID (mm) | OD (mm) | Radius (mm) |
| 10 | PAH-07B | 6.4 | 10.0 | 15 |
| 14 | PAH-10B | 9.6 | 13.0 | 20 |
| 16 | PAH-12B | 11.8 | 15.8 | 30 |
| 20 | PAH-16B | 15.9 | 21.2 | 40 |
| 25 | PAH-22B | 21.7 | 28.5 | 45 |
| 32 | PAH-28B | 27.8 | 34.5 | 55 |
| 40 | PAH-36B | 36.0 | 42.5 | 60 |
| 50 | PAH-48B | 46.5 | 54.5 | 70 |
| 63 | PAH-56B | 56.3 | 67.2 | 110 |
| 80 | PAH-70B | 70.0 | 82.5 | 160 |
| 100 | PAH-95B | 91.5 | 106.0 | 210 |
Applications
Machine tool, Shipbuilding, Railway, Automation, Printing, Tunnel, Security, Marine, Green Star Projects.
Temperature Rating
– 40 to 105 degrees centigrade
short term 150 degrees centigrade
TNC Straight Metric Fittings
| Trade Size | Thread (mm) | Code | Pack Qty |
| 10 | 12 x 1.5 | TNC-M107B | 25 |
| 10 | 16 x 1.5 | TNC-M127B | 25 |
| 10 | 20 x 1.5 | TNC-M167B | 25 |
| 14 | 12 x 1.5 | TNC-M10B | 25 |
| 14 | 16 x 1.5 | TNC-M120B | 25 |
| 16 | 12 x 1.5 | TNC-M102B | 25 |
| 16 | 16 x 1.5 | TNC-M12B | 25 |
| 20 | 20 x 1.5 | TNC-M16B | 25 |
| 20 | 16 x 1.5 | TNC-M126B | 25 |
| 20 | 25 x 1.5 | TNC-M226B | 25 |
| 25 | 25 x 1.5 | TNC-M22B | 25 |
| 32 | 32 x 1.5 | TNC-M28B | 25 |
| 40 | 40 x 1.5 | TNC-M36B | 25 |
| 50 | 50 x 1.5 | TNC-M48B | 25 |
| 63 | G2″ | TNC-G56B | 5 |
| 80 | G2 1/2″ | TNC-G70B | 5 |
| 100 | G4″ | TNC-G95B | 5 |
TWC 90° Metric Fittings
| Trade Size | Thread (mm) | TWC 90° Elbow | Pack Qty |
| 10 | 12 x 1.5 | TWC-M107B | 25 |
| 14 | 12 x 1.5 | TWC-M10B | 25 |
| 16 | 12 x 1.5 | TWC-M12B | 25 |
| 20 | 20 x 1.5 | TWC-M16B | 25 |
| 25 | 25 x 1.5 | TWC-M22B | 25 |
| 32 | 32 x 1.5 | TWC-M28B | 25 |
| 40 | 40 x 1.5 | TWC-M36B | 25 |
| 50 | 50 x 1.5 | TWC-M48B | 25 |
Fitting Specifications
Polyamide 6
Superior UV Resistance
IP rating of 67
Flame Retarded UL94 VO Self Extinguishing
Standards meets AS2503 Parts 1 & 5
Temp rating of -40 to 105 degrees centigrade
Metric thread pitch is 1.5mm
TWC 45° Metric Fittings
| Trade Size | Thread (mm) | TWC 45° Elbow | Pack Qty |
| 14 | 12 x 1.5 | TAC-M10B | 25 |
| 16 | 12 x 1.5 | TAC-M12B | 25 |
| 20 | 20 x 1.5 | TAC-M16B | 25 |
| 25 | 25 x 1.5 | TAC-M22B | 25 |
| 32 | 32 x 1.5 | TAC-M28B | 25 |
| 40 | 40 x 1.5 | TAC-M36B | 25 |
| 50 | 50 x 1.5 | TAC-M48B | 25 |
